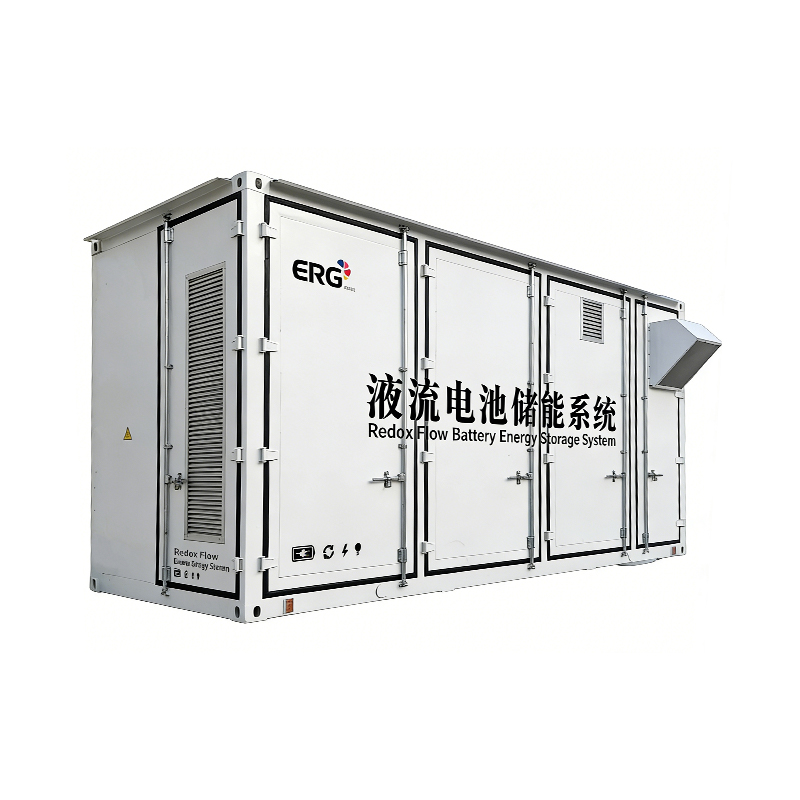

82kW/300kWh Large-Scale Vanadium Flow Battery Energy Storage System

82kW/300kWh Large-Scale Vanadium Flow Battery Energy Storage System Industry Knowledge

What Large-Scale Vanadium Flow System Means in Practice

A Large-Scale Vanadium Flow System is usually discussed in the context of grid projects or industrial energy storage rather than small battery applications. The basic structure is not centered on solid battery blocks. Instead, energy is kept in liquid electrolytes that contain vanadium compounds and are stored in external tanks. The actual energy conversion happens inside a stack where electrochemical reactions take place.

In real project communication, engineers often shorten this to Vanadium Flow Battery System, especially when talking about installation layout or equipment planning. The interest behind this topic is often practical: how to handle unstable renewable output, how to store energy for longer periods, and how to keep supply balanced when demand changes throughout the day.

How the system behaves during operation

In a Large-Scale Vanadium Flow System, energy is transferred through two circulating liquid loops. Each loop contains vanadium ions, but they exist in different chemical states. When charging or discharging takes place, these states shift inside the stack through reversible reactions.

The membrane between both sides controls ion movement while keeping the liquids separated. There is no direct mixing of electrolytes, and the reaction stays inside the controlled environment of the stack.

One detail often mentioned in real engineering notes is that the active material remains in liquid form for the entire operating life. Nothing in the core electrolyte structure is physically consumed in the way solid electrodes degrade over time. Because of this, discussions about Long-Duration Energy Storage Battery systems often include vanadium flow technology when looking at repeated cycling over long periods.

Where Large-Scale Vanadium Flow Systems are applied

A Large-Scale Vanadium Flow System is mainly used in fixed installations. It is not designed for compact devices or transport use. The system is selected when space is available and when energy needs to be managed over time rather than delivered in short bursts.

In renewable energy projects, it is often used to handle uneven power output. Solar and wind generation change depending on conditions, so storage is used to reduce that variation. A Long-Duration Energy Storage System can store extra electricity during high generation and release it later when output drops.

Industrial users apply similar systems when electricity demand changes during production cycles. Instead of reacting to sudden peaks, energy is shifted across time periods. In backup scenarios, the system can support longer discharge periods, which is more suitable for facilities that require continuous operation support.

Maintenance perspective in real operation

A Maintenance-Free Energy Storage System in this field does not mean there is no servicing at all. It is more about how the energy material behaves over time. In a Large-Scale Vanadium Flow System, the electrolyte does not undergo the same kind of wear seen in solid battery materials.

The liquid is circulated and reused continuously, so the main energy storage medium does not need replacement due to structural degradation. Mechanical parts such as pumps or pipes still need inspection, but the electrochemical material itself remains stable across long operating cycles.

This is one reason the system is often considered in projects where stable operation and reduced material turnover are important planning factors.

Comparison with lithium-based storage systems

A Long-Duration Energy Storage Battery based on vanadium flow technology works differently from lithium systems. Lithium batteries are designed for compact structure and higher energy density, which fits mobile equipment and space-limited installations.

A Large-Scale Vanadium Flow System follows another direction. Energy capacity is increased by expanding the volume of electrolyte, while power output depends on the stack size. These two parts are not tightly linked, which gives more flexibility when designing large storage projects.

From a usage perspective, a Long-Duration Energy Storage System is more suitable when energy needs to be released over longer time ranges instead of short, high-intensity output periods.
